Great Things Come in Small Packages

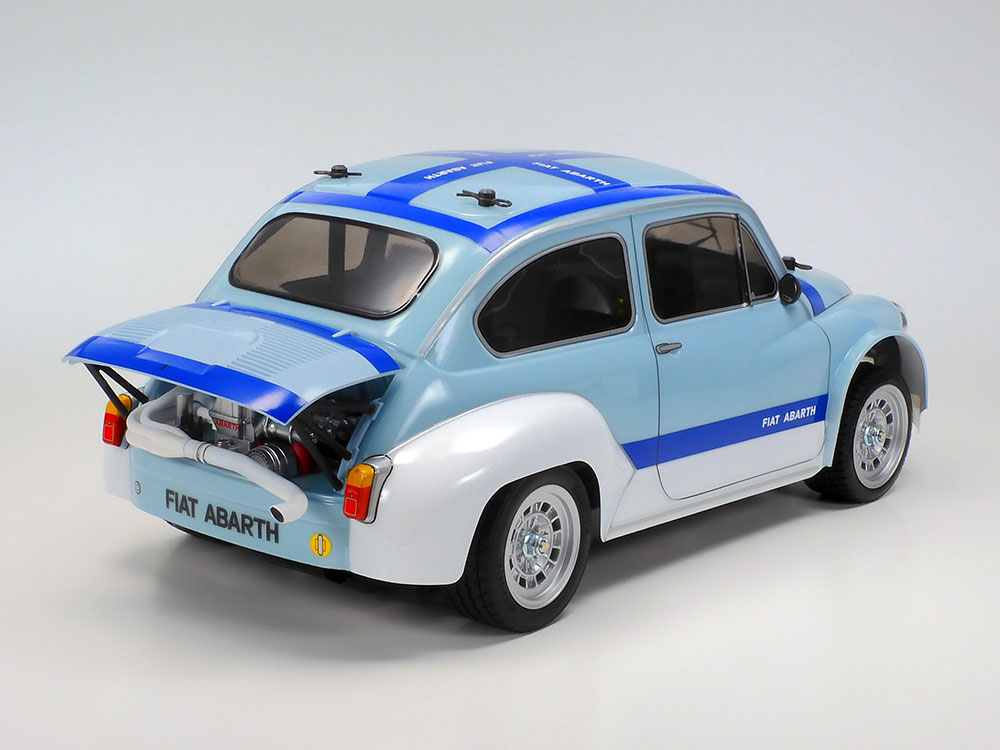

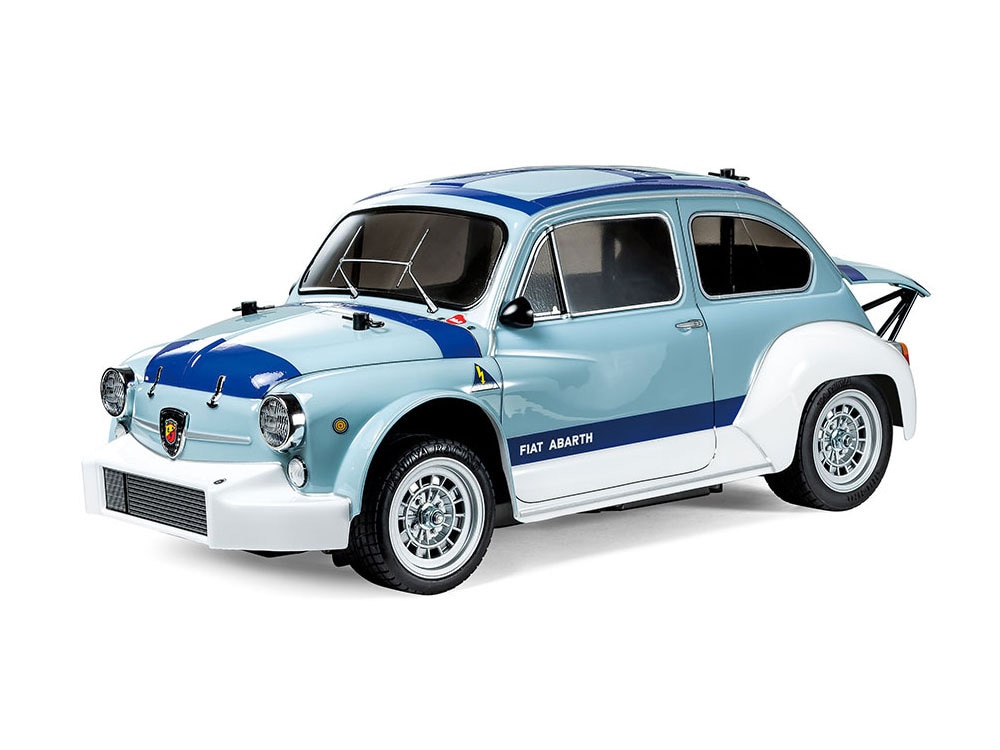

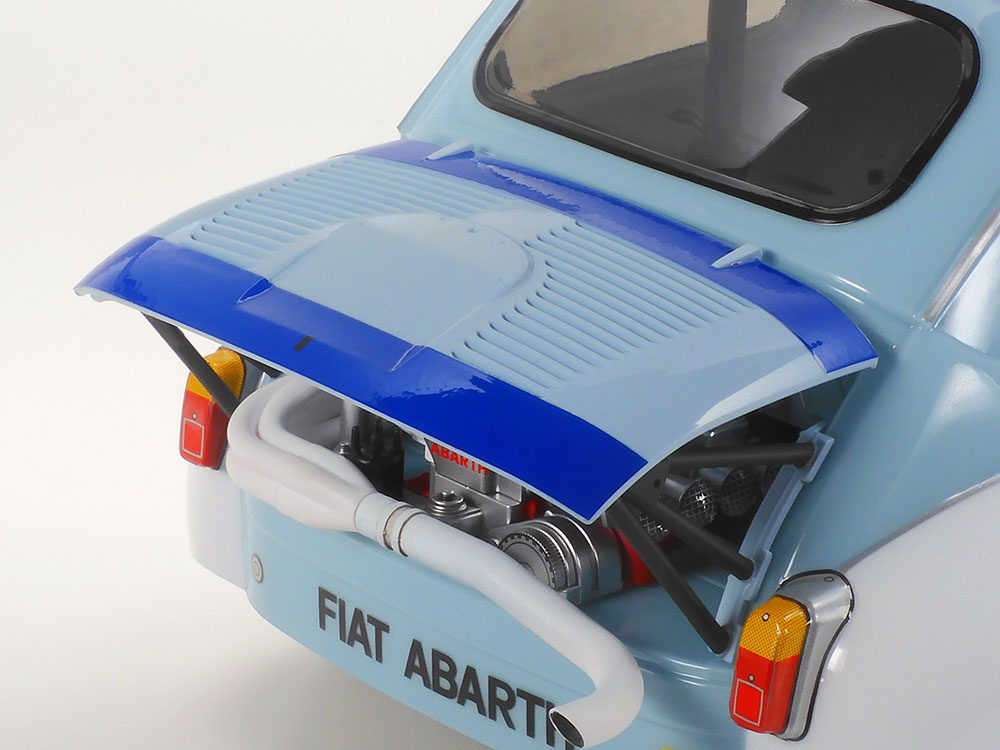

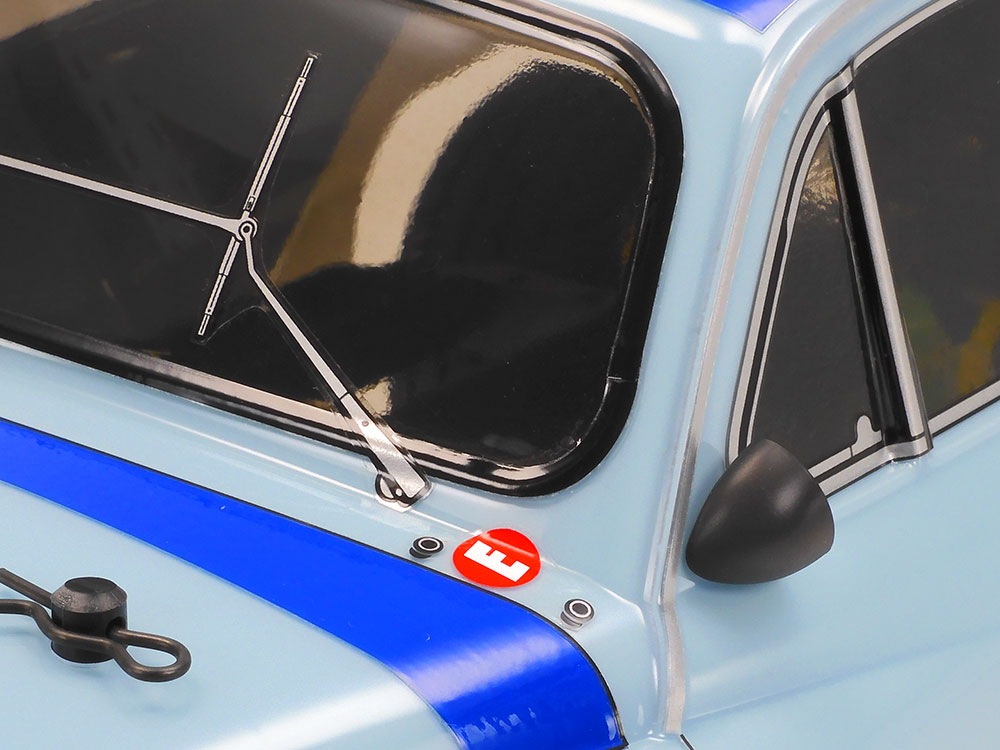

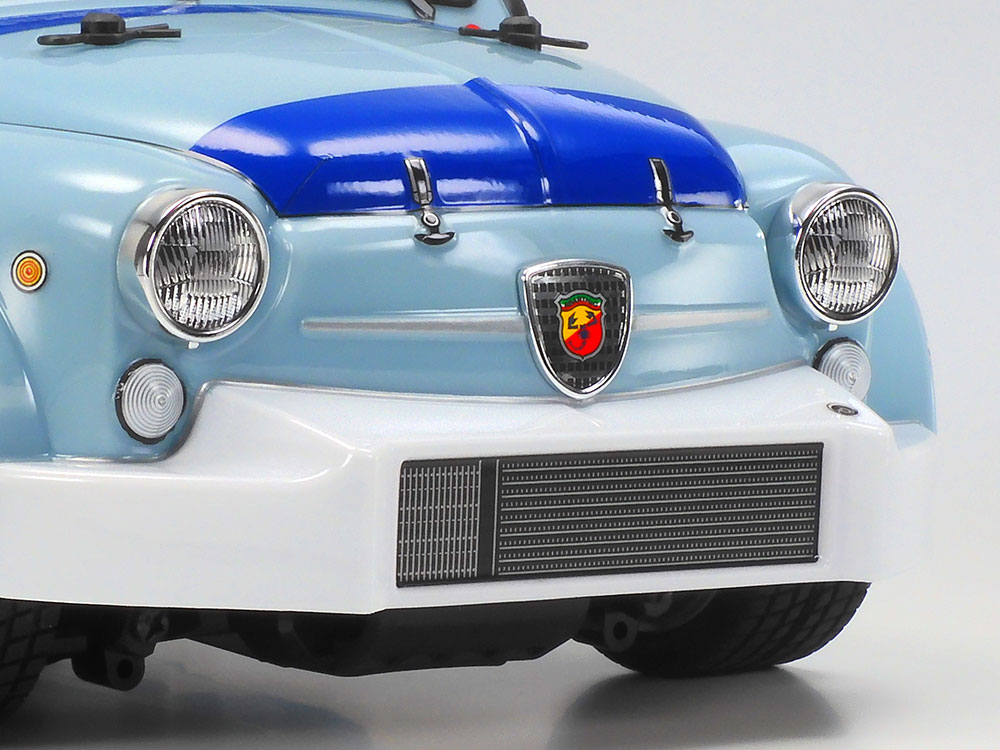

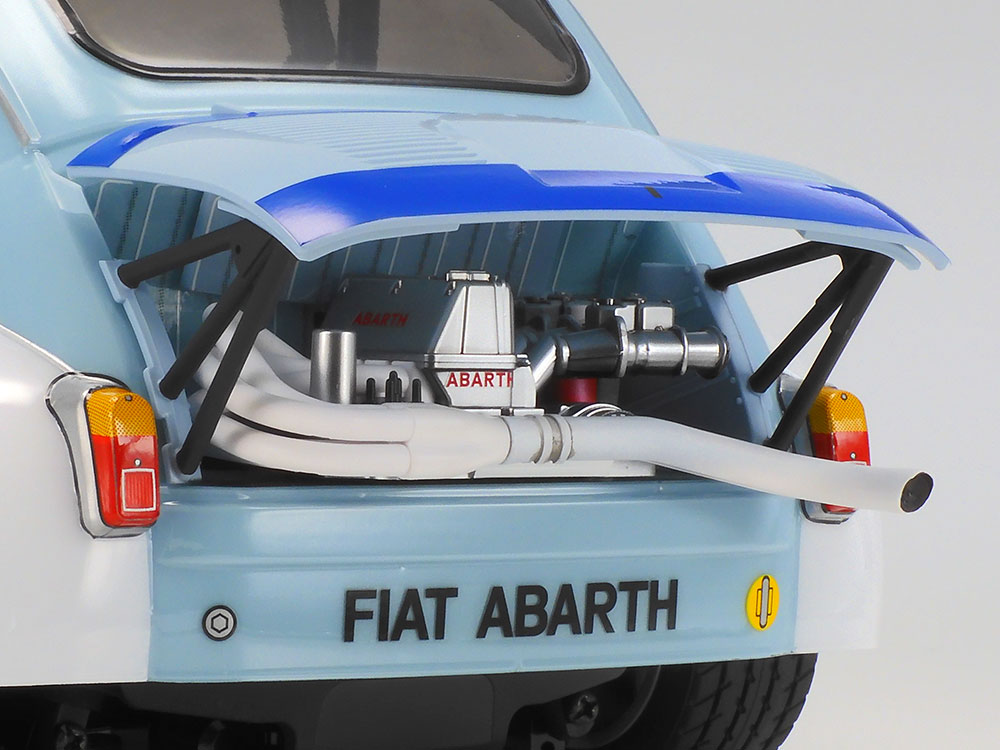

The Fiat Abarth 1000 TCR Berlina Corse became European Touring Car Championship class champion in 1968 and 1969. Based upon the compact 2-door Fiat 600, it was tuned by Abarth for races. The muscular form had front and rear over fenders, a large radiator cover integrated with the front bumper, and horizontally-opened engine hood. A 982cc inline-4 engine capable of over 110hp underpinned its powerful performance. This R/C model assembly kit depicts the small but mighty silhouette of the car elegantly using a polycarbonate body and plenty of separately molded plastic parts, the whole package being based upon the new MB-01 chassis.

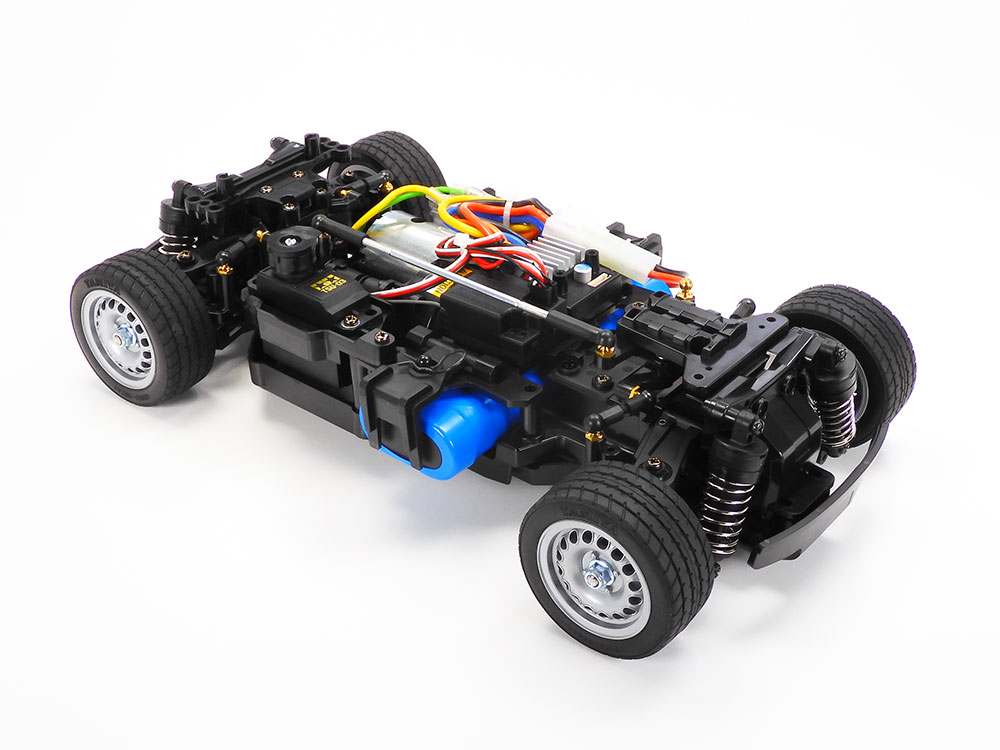

The MB-01 Chassis

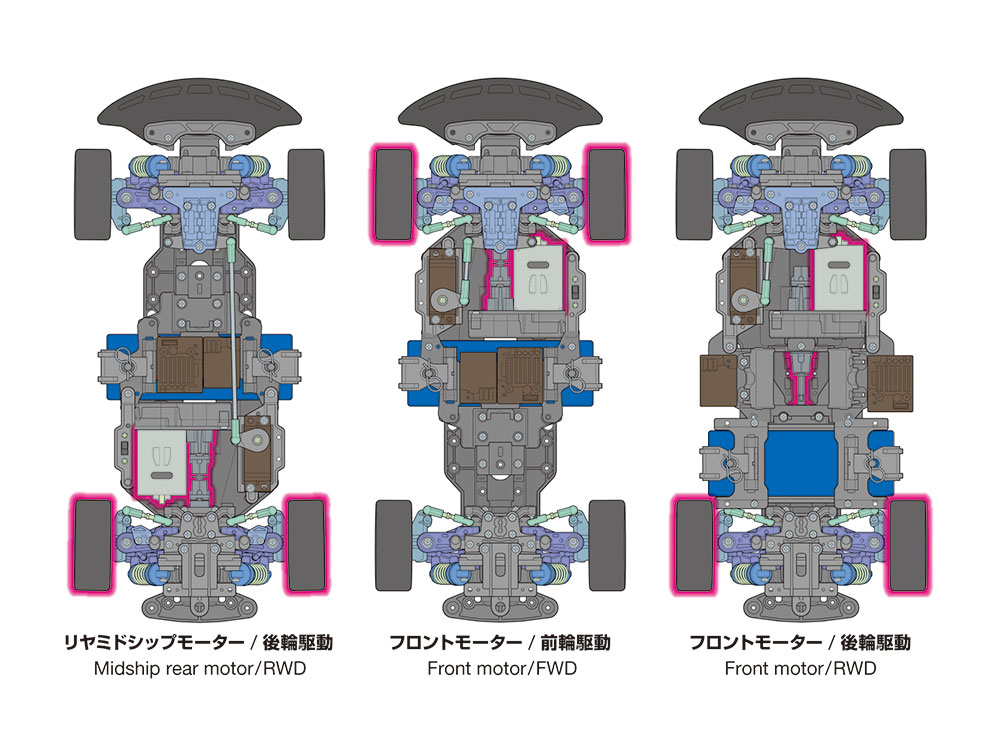

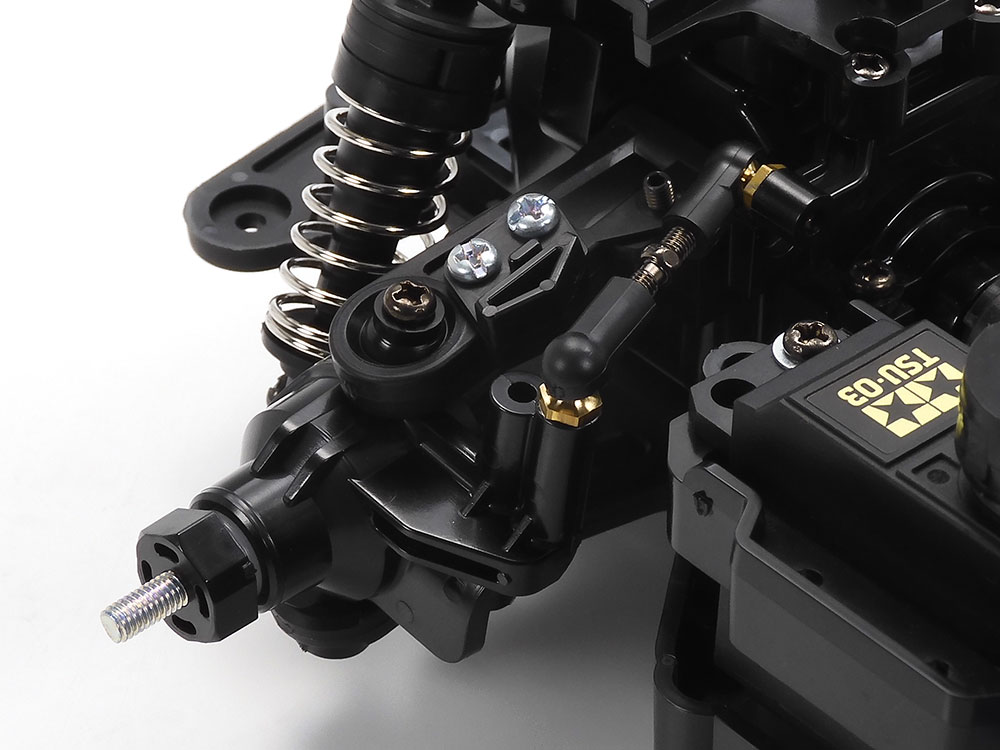

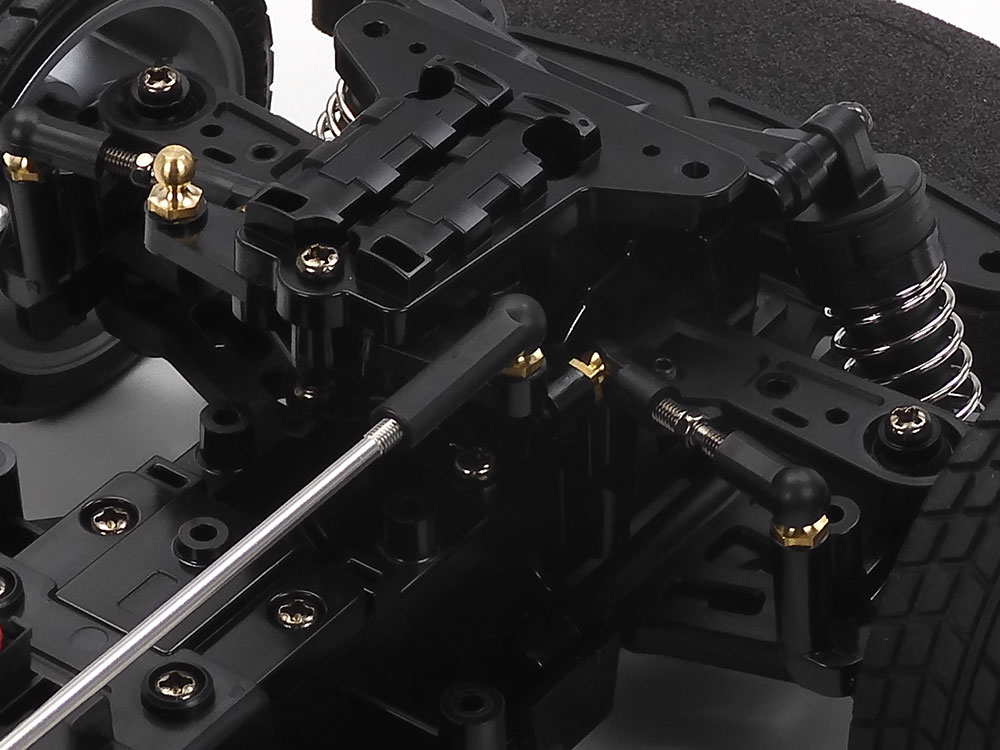

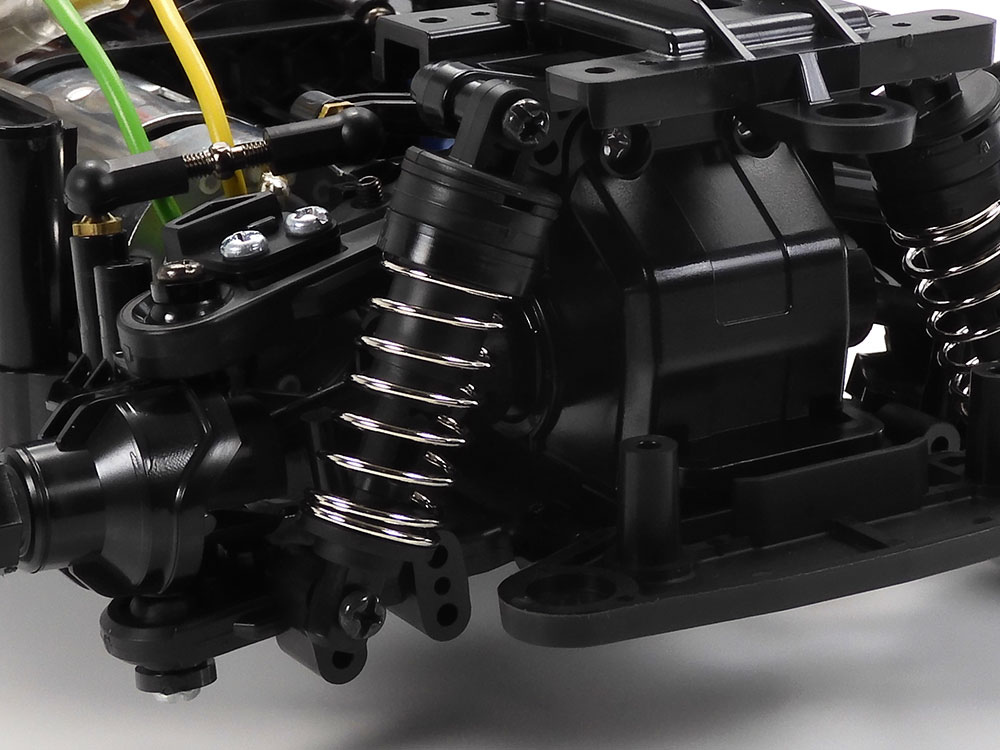

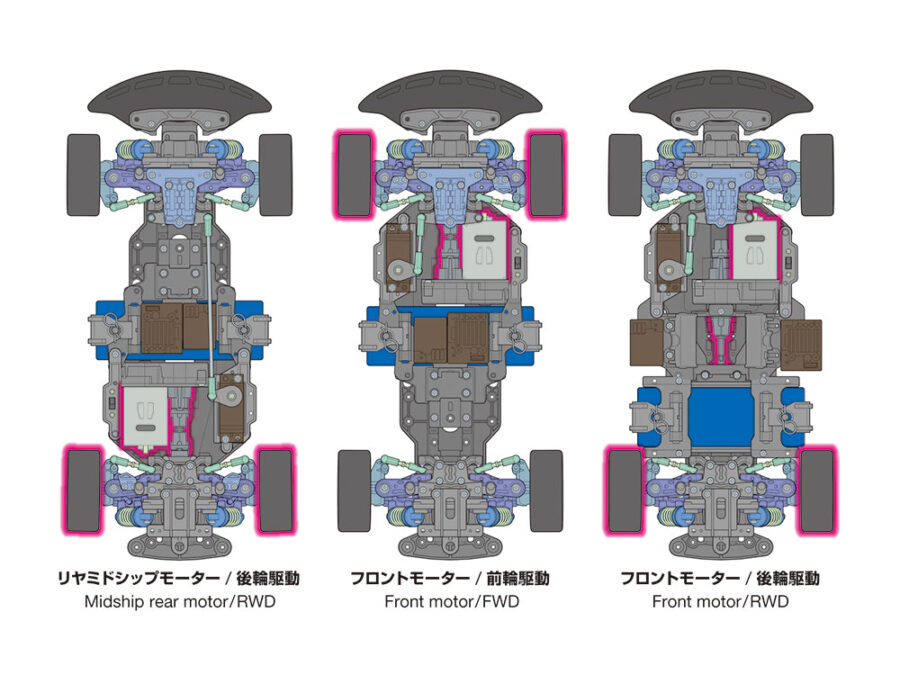

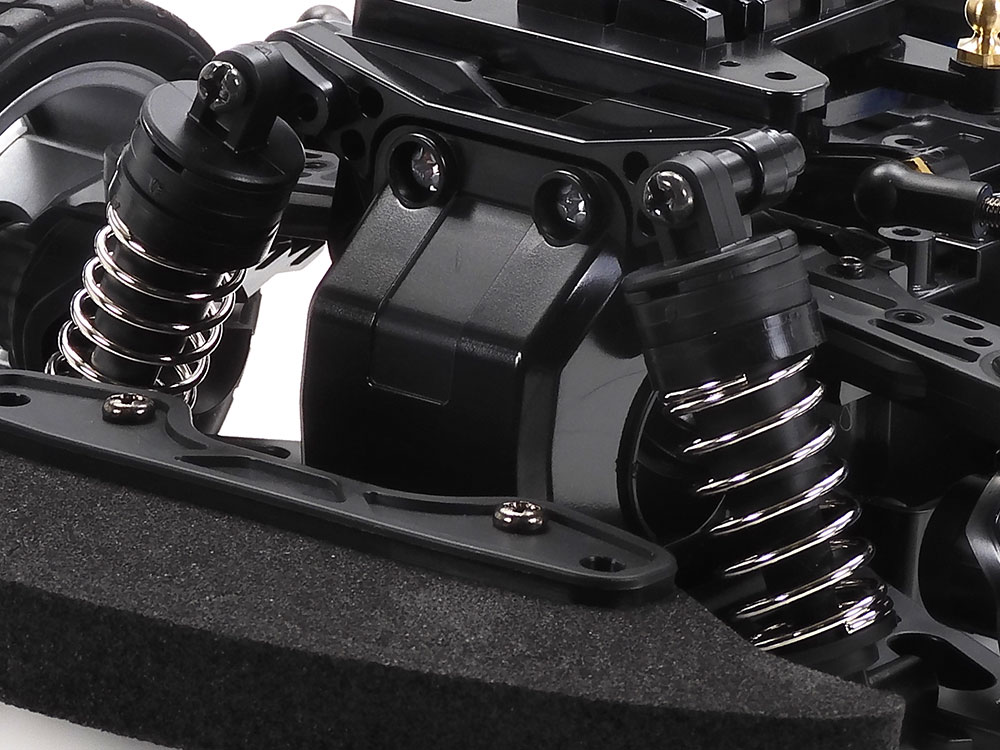

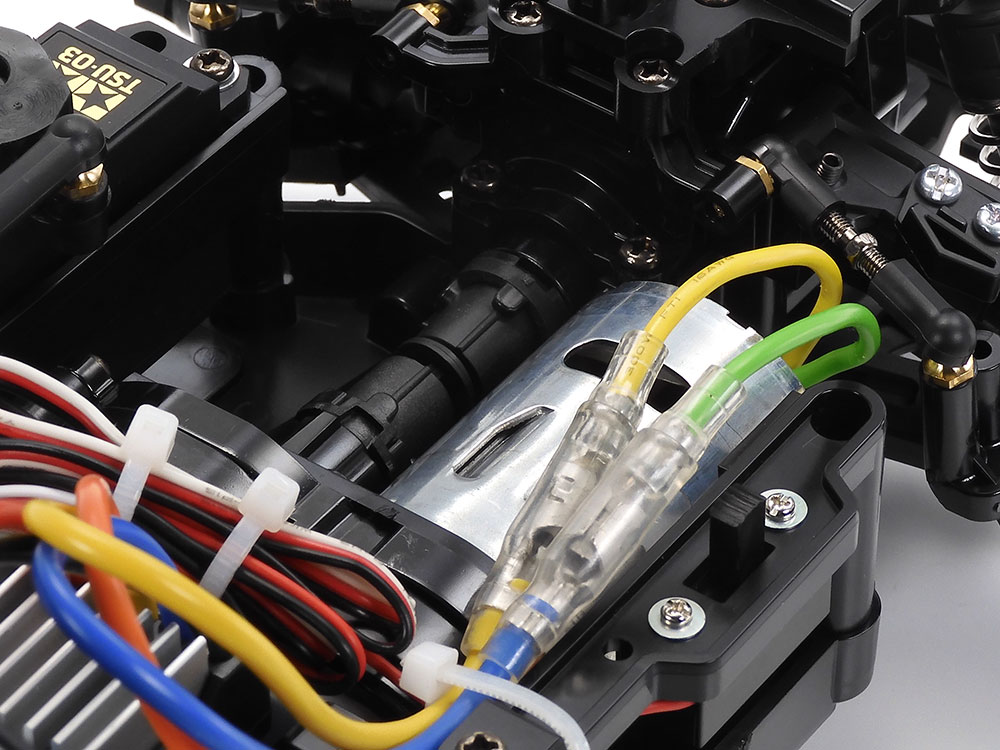

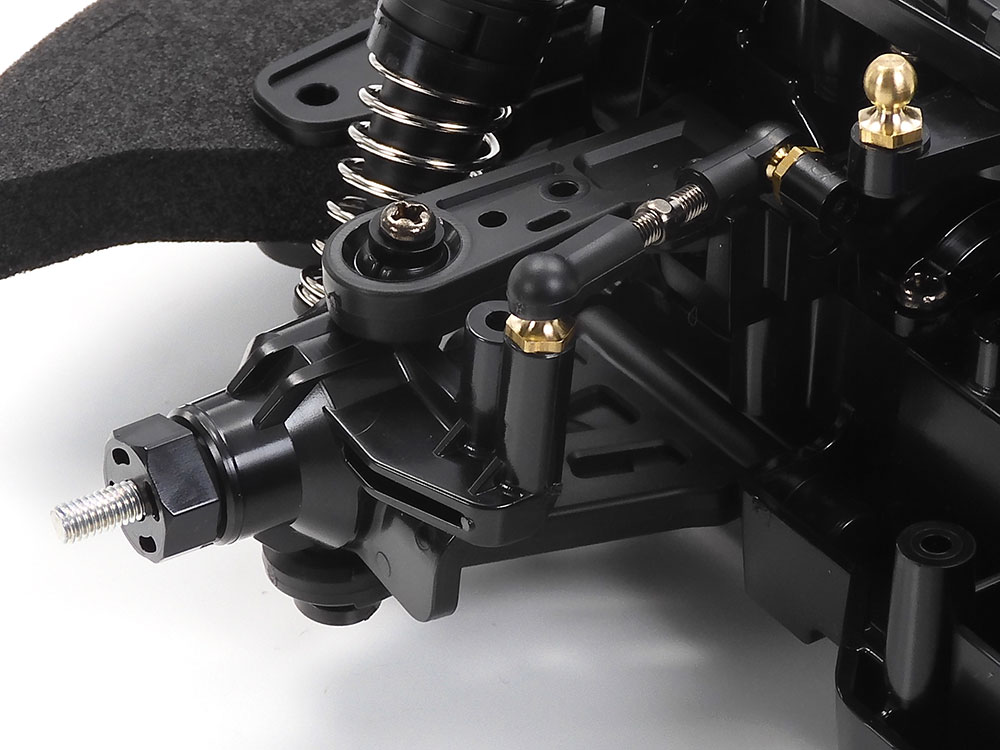

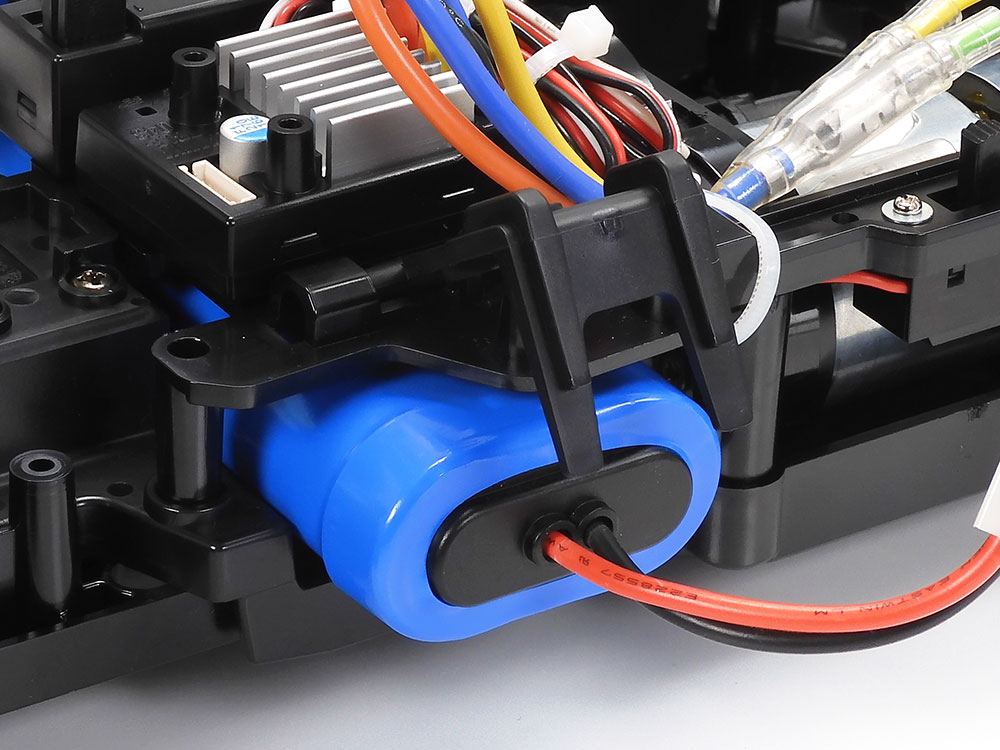

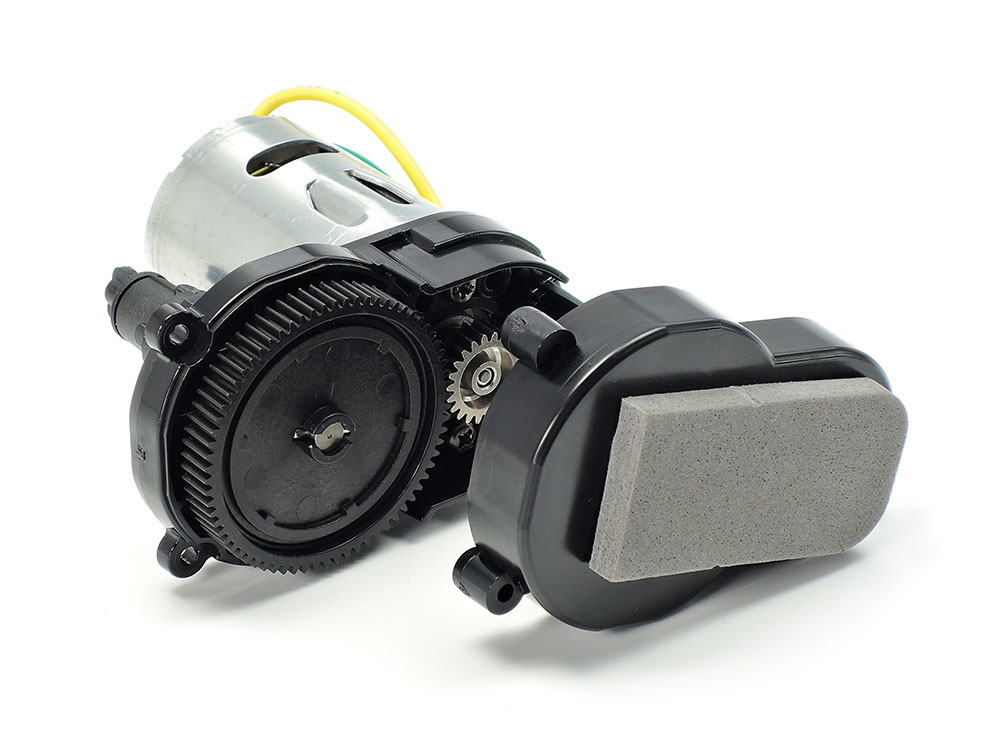

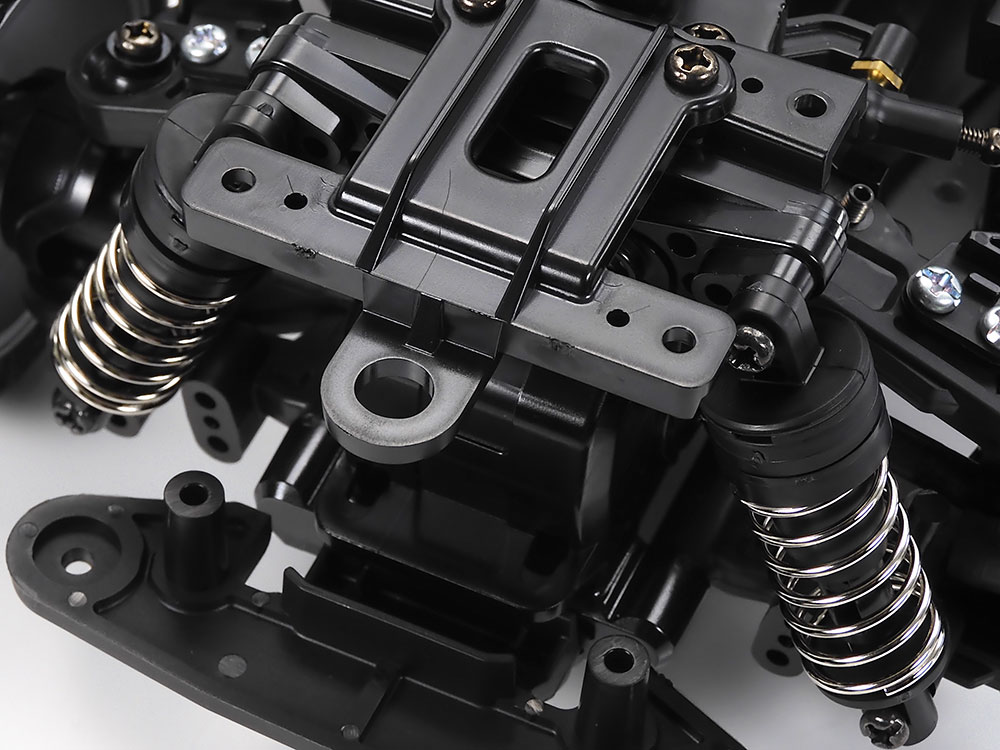

The compact, 2WD MB-01 chassis gives a choice of three types of wheelbase, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without removing battery pack, motor and R/C equipment setups from the center frame, simply change attachment directions of final gears and steering linkage to switch between front- and rear-wheel drive; low or high motor position can be chosen for rear-wheel drive cars. The 4-wheel double wishbone suspension features symmetrical structure and friction dampers. Unitized sections such as motor mount, final gears and suspension facilitate ease of assembly and effective maintenance.
Specifications

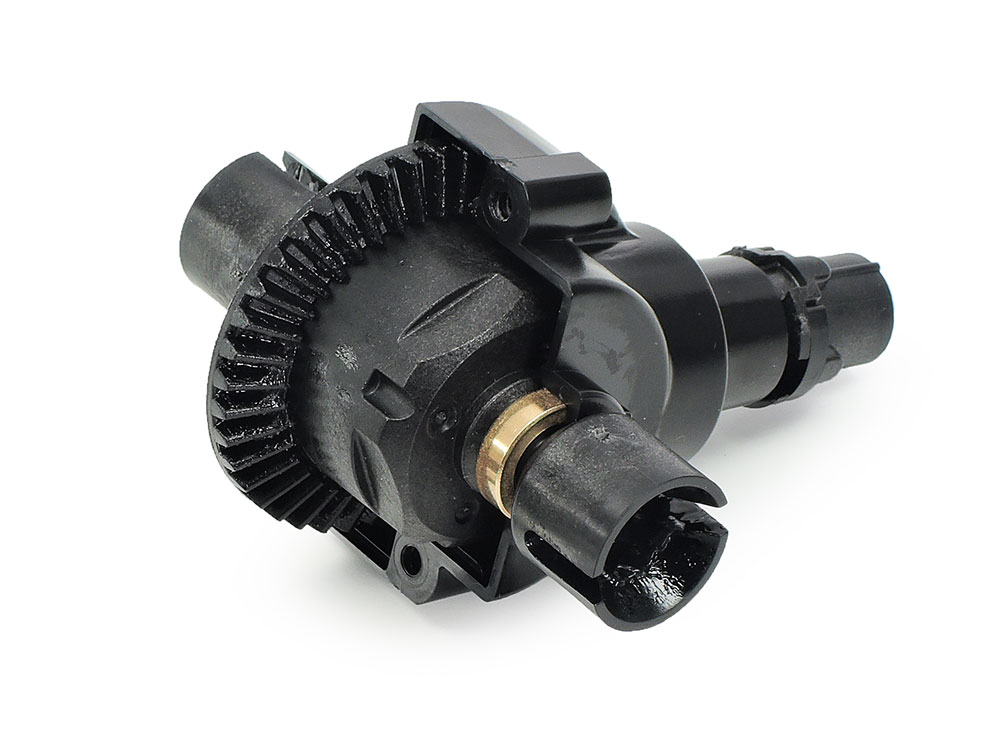

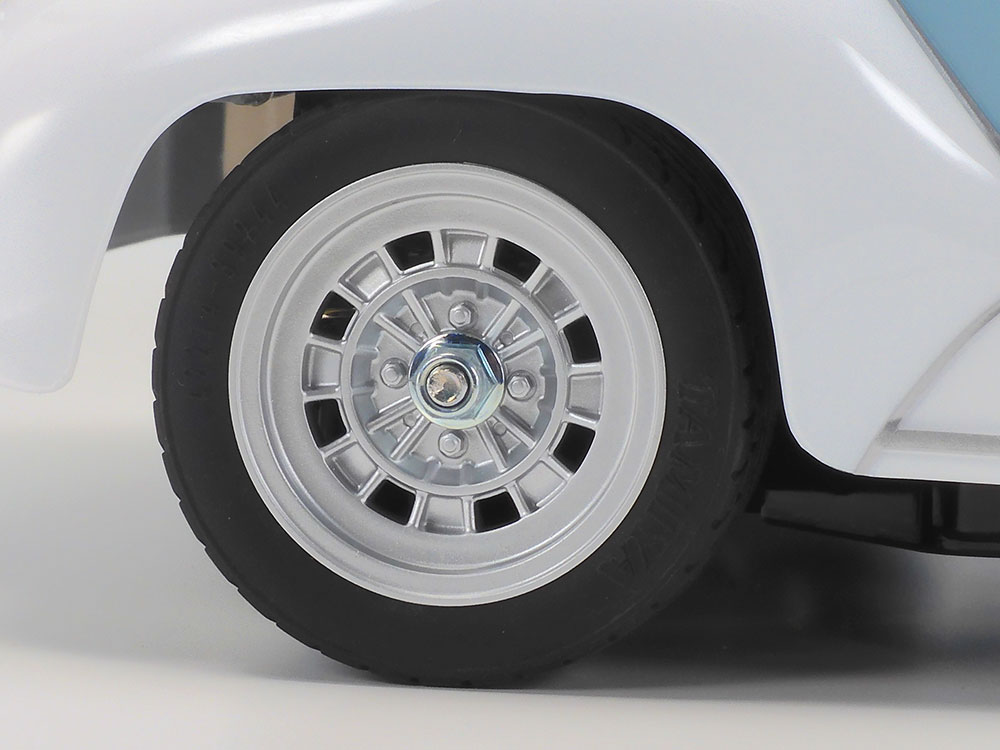

★Length: 374mm, width: 168mm, height: 140mm ★Wheelbase: 210mm (Short) ★Tread: 140mm (front & rear) ★Tire width/diameter: 25/55mm (front), 25/59mm (rear) ★Bathtub type chassis ★Midship motor, rear-wheel drive ★4-bevel differential gear ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Friction dampers ★Gear ratio = 5.83:1 (using kit 29T pinion) ★Type 540 motor ★Electronic speed controller (ESC) is sold separately.
Separately Required Items
★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
